Aquatica Downtown HydroRelax Pro Bathtub With Composite Siding

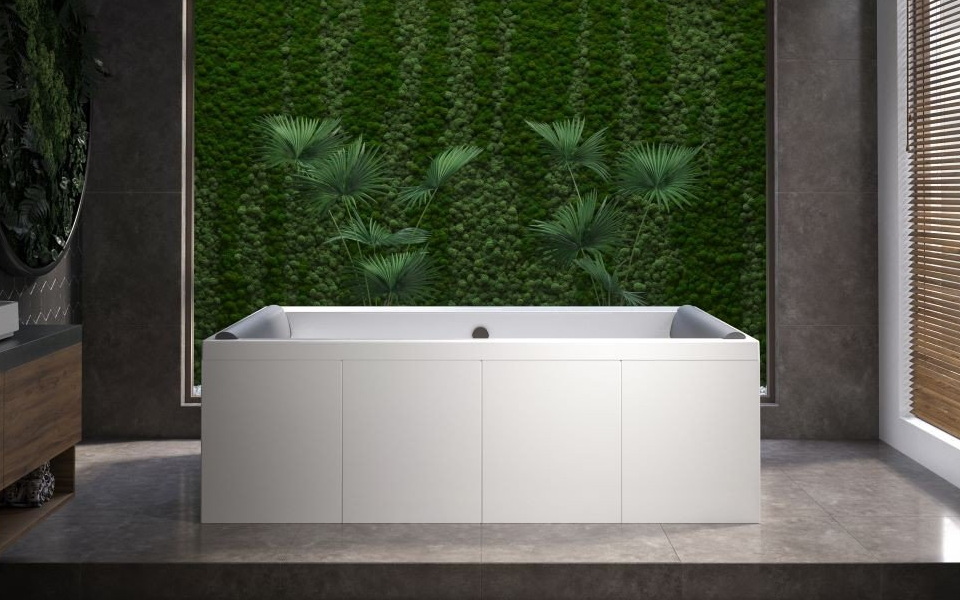

Aquatica Downtown HydroRelax Pro Freestanding DurateX Bathtub With Maridur Composite Panels01

Aquatica Downtown HydroRelax Pro Bathtub With Composite Siding

The Downtown HydroRelax Pro Bathtub can transform any bathroom into an exclusive home spa sanctuary, thanks to world-class aesthetics, well-researched ergonomics and advanced hydromassage technology. Growing demand for wellness enhancing bathroom fixtures inspired Aquatica to design an indoor bathtub version of the popular Downtown Spa Series of luxury outdoor hot tubs. Similar to the Downtown Spa, the HydroRelax Pro Bathtub is equipped with 32 hydro-massage jets, 12 air massage jets and back massage with Air Assist Turbo Massage (AATM™). These high-tech wellness features deliver a powerful whirlpool massage along the entire back, from cervical to lumbar. Aquatica’s integrated Chromotherapy LED-powered lighting system creates a truly tranquil ambiance, allowing bathers to completely relax and lower stress levels. Chromotherapy offers many important health benefits, such as reducing pain, inflammation, and accelerating open wound healing. The Downtown HydroRelax Pro’s inner shell is made of durable award-winning proprietary composite material DurateX™, while the exterior features white high-gloss composite panels. This premium moisture-resistant material provides extra protection, along with a radiant upscale appeal. Create the ultimate spa experience, by adding optional features such as Integrated Bluetooth Audio, the Aromatherapy Package, and the Electrical Fill and Drain system. 32 sleek hydromassage jets 18 air massage nozzles 4 LED spot lights Back massage with Air Assist Turbo Massage (AATM™) Innovative ozone water disinfection system 2 integrated polyurethane headrests included Dedicated energy saving circulation pump Designed for comfortable four person bathing Water capacity - 520 Litres (135 gallons) Bathtub weight (dry): 549 lbs (249 kg) 10 year limited warranty on the bathtub shell 2 year limited warranty for Wellness System components Extra Deep bathtub 2nd hydromassage pump for DHP™ (Dual Hydromassage Power) and Hydromassage Zone Control (HZC™) (optional) Electrical fill and electrical fast drain system for yachts (optional) Bluetooth Audio with 2 POP-UP speakers and subwoofer and Wi-Fi (optional)

Aquatica

USD 18130.00 2030-01-01
Downtown 627722012601 Downtown-HydroRelax-Composite
5 5 1 1
Aquatica
1 5 5
Hello! I am writing to say THANK YOU! Thank you so much for being such a responsive company! Jared Barnard came out yesterday and today to help us get our hot tub up and running as well as attach our panels. He was knowledgeable, competent, pleasant, detailed, meticulous and so helpful. We are truly so appreciative to finally be able to have a working heater as well as have our panels fixed and attached. The hot tub is beautiful and we are looking forward to finally being able to use it. Again, thank you for all of your patience with us as consumers as well as your responsiveness. Sincerely, Cheri and David Moss
Aquatica Downtown HydroRelax Pro Bathtub With Composite Siding

Aquatica Downtown HydroRelax Pro Bathtub With Composite Siding

1 Review
360 view360 View
product docsDocumentation

Key Features

1 Customized product 50 2 (web)
Can Be Customized
7 For people 6ft (web)
For people 6ft+
4 Part of collection (web)
Part of Collection
8 Heated bathtub (web)
Heated
9 Air massage (web)
Air Massage
10 Turbo Pro water massage (web)
Turbo Pro Massage
12 Multicolored chromotherapy (web)
LED Lights
13 Capacitive Glass Keypad (web)
Capacitive Keypad
Key feature extra deep bathtub
Extra Deep Bathtub
Unique design 50 (web)
Unique Design
2 bluetooth50 2 (web)
Optional Bluetooth
11 Turbo water massage (web).png
Turbo Massage

Product Details

General parameters

Exterior dimensions (in) 79 L x 59.25 W x 31.75 H
Depth to overflow drain (in) 20.5
Product weight (lb) 549
Shape Rectangular
Product material DurateX™ Tub Shell With Composite Siding
Installation type Freestanding
Warranty 10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name Downtown
SKU Downtown-HydroRelax-Composite
Country where manufactured USA
Product color White
Surface finish High Gloss
Drain placement Reversible
Assembly required No
Type of Massage Hydromassage

Interior parameters

Interior depth (in) 23.5
Interior length top (in) 66
Interior width top (in) 45.5

Package parameters

Package dimensions (in) 86.5 L x 67 W x 47.75 H
Shipping weight (lb) 988
Number of boxes 1

Electrical power requirements

Electrical standards 220-240V/50-60Hz
Required electrical voltage 220-240V/50-60Hz
Junction Box 1 Wire
Electrical circuit breakers 25A RCD protected
Circuits required 1 Single Circuit

Installed equipment

Circulation pump No
Heater No
Bluetooth audio system No
Stereo speakers No
Subwoofer No
Show moreView documentation
Shipping Information
Lead Time
Request
Shipping Cost
$549
Return
30 days
Not Available

Product Modifications

Colored Exterior Finish +$3,210
Spa Top Cover
+$1,930
This is a special order or customized product and cannot be cancelled or returned
Get 10% off on additional products...Read more

The Downtown HydroRelax Pro Bathtub can transform any bathroom into an exclusive home spa sanctuary, thanks to world-class aesthetics, well-researched ergonomics and advanced hydromassage technology. Growing demand for wellness enhancing bathroom fixtures inspired Aquatica to design an indoor bathtub version of the popular Downtown Spa Series of luxury outdoor hot tubs.

Similar to the Downtown Spa, the HydroRelax Pro Bathtub is equipped with 32 hydro-massage jets, 12 air massage jets and back massage with Air Assist Turbo Massage (AATM™). These high-tech wellness features deliver a powerful whirlpool massage along the entire back, from cervical to lumbar.

Aquatica’s integrated Chromotherapy LED-powered lighting system creates a truly tranquil ambiance, allowing bathers to completely relax and lower stress levels.

Show more

Chromotherapy offers many important health benefits, such as reducing pain, inflammation, and accelerating open wound healing.

The Downtown HydroRelax Pro’s inner shell is made of durable award-winning proprietary composite material DurateX™, while the exterior features white high-gloss composite panels. This premium moisture-resistant material provides extra protection, along with a radiant upscale appeal.

Create the ultimate spa experience, by adding optional features such as Integrated Bluetooth Audio, the Aromatherapy Package, and the Electrical Fill and Drain system.

  • 32 sleek hydromassage jets
  • 18 air massage nozzles
  • 4 LED spot lights
  • Back massage with Air Assist Turbo Massage (AATM™)
  • Innovative ozone water disinfection system
  • 2 integrated polyurethane headrests included
  • Dedicated energy saving circulation pump
  • Designed for comfortable four person bathing
  • Water capacity - 520 Litres (135 gallons)
  • Bathtub weight (dry): 549 lbs (249 kg)
  • 10 year limited warranty on the bathtub shell
  • 2 year limited warranty for Wellness System components
  • Extra Deep bathtub
  • 2nd hydromassage pump for DHP™ (Dual Hydromassage Power) and Hydromassage Zone Control (HZC™) (optional)
  • Electrical fill and electrical fast drain system for yachts (optional)
  • Bluetooth Audio with 2 POP-UP speakers and subwoofer and Wi-Fi (optional)
A Sleek & Striking Sunken Spa Tub
A Sleek & Striking Sunken Spa Tub
Designed to provide the wow-factor, the Downtown HydroRelax Pro features a sharp rectangular form with perfect straight lines and a contemporary appeal. The tub’s interior includes two sleek ergonomic headrests for optimum comfort. This luxurious sunken tub offers a myriad of design opportunities, and can be easily built into any large bathroom.
Aquatica Downtown HydroRelax Pro Freestanding DurateX Bathtub With Maridur Composite Panels01 1
One Of The Largest & Deepest Spa Baths On The Market
One Of The Largest & Deepest Spa Baths On The Market
Extremely spacious, the Downtown HydroRelax Pro features dimensions of 79 L x 59.25 W inches (200 L x 150 W cm). Two bathers have plenty of room to completely unwind and benefit from a relaxing hydromassage in a deep tub with an impressive depth of 20.5 inches (52 cm). Ergonomically designed slanted walls with soft pillows provide excellent support and comfort.
Downtown Scheme (web)
Ergonomically Designed For A Comfortable Bathing Experience
Ergonomically Designed For A Comfortable Bathing Experience
Designed for four person bathing, the Downtown Bathtub features an ergonomic interior with an optimized lying position, and a comfortable backrest for deep full body immersion. The tub’s wide rim ensures easy accessibility and provides a place for storing bath accessories. Bathers can pleasantly recline against the premium DurateX high gloss surface. A sleek and seamlessly integrated overflow is conveniently located.
Downtown Scheme DurateX
Back Massage With Air Assist Turbo Massage (AATM™)
Back Massage With Air Assist Turbo Massage (AATM™)
Powerful therapeutical, deep tissue back massage delivered by a powerful 2HP pump with forced air injection. Air Assist Turbo Massage (AATM ™) provides a stronger and more intensive back hydromassage.
Pam Wht Spa Int Feature 1
Exclusive, State Of The Art Glass Keypad
Exclusive, State Of The Art Glass Keypad
A state-of-the-art capacitive glass keypad allows bathers to easily control all spa functions, including the pumps, air-massage, chromotherapy and water temperature systems. This ensures a first class home spa experience.
Lacus snippet 2 (web)
Memory Gel Bath Headrests For Maximum Comfort
Memory Gel Bath Headrests For Maximum Comfort
Ergonomically designed Memory Gel Headrests take the bathing experience to the next level, allowing the body to completely unwind against a soft and flexible bath pillow. Memory Gel Headrests naturally adapt to the shape of your body, providing optimum support for the head and neck.
Aquatica Downtown Headrests02
Designed For Bathers Of All Heights
Designed For Bathers Of All Heights
It is extremely rare to find a luxury bathtub suitable for all heights, but this model delivers the perfect solution, ensuring both tall and short bathers can soak in style and comfort. Even tall bathers over 6ft (180cm), who struggle to find the right bathtub can relax in this tub, thanks to the tub’s spacious interior and length of 72.75 inches. Shorter bathers can enjoy the extra space, and benefit from the tub’s easily accessible low profile walls.
6ft 2
Pre-Installed Relax Air System
Pre-Installed Relax Air System
There is simply no better name for Aquatica’s superb air massage system. It primary purpose is to let you to lie back and relax in your bathtub, whilst the myriad warm air bubbles caress and gently massage your skin. The Relax system is the result of Aquatica’s continued drive for excellence and innovation in order to take bathing to new heights of luxury and health-giving invigoration. At least sixteen low-profile air jets deliver thousands of warm bubbles into the bath, with variable speed electronic control for wave or pulse modes at different pressures.
Relax Bathtub Icon 200x200 web
Energy Efficiency
Energy Efficiency
Does your plumber keep saying that you must purchase a new and expensive water tank to be able to enjoy that deep bath that you have always craved for? Having a heated bathtub with an efficient inline water heater means that you’re not only saving energy and not wasting money, but you’re also being more environmentally friendly.
Energy Efficient 200x200 (web)
Therapeutic & Energizing Chromotherapy Effect
Therapeutic & Energizing Chromotherapy Effect
Chromotherapy offers numerous therapeutic benefits for the body, mind and soul, while enhancing the overall ambiance. Aquatica’s concealed underwater chromotherapy system with four LED spotlights provides an unparalleled light therapy effect, to balance and harmonise the body. The lights can be set in a slow rotation or fixed color mode to soothe the body and enhance energy levels. Each color in the program has different characteristics, and bathers can select a specific light show to suit their mood.
Fusion HydroRelax Jetted Outdoor Indoor Bathtub Chromotherapy (web)
Ozone Disinfection System
Ozone Disinfection System
Our HydroRelax Pro bathtubs are equipped with an innovative ozone water disinfection system for a healthier and more enjoyable bathing experience.
Оzonation 200x200 web
DHP™ (Dual Hydromassage Power)
DHP™ (Dual Hydromassage Power)
For larger hydromassage tubs, Aquatica can install a second powerful pump. Our proprietary DHP™ (Dual Hydromassage Power) consists of two independently mounted massage systems with separate functions and controls. One pump powers an effective general hydromassage, while the second pump drives the back and foot-massage systems.
DHP Dual Hydromassage Power (web)
Ergonomically Designed For Maximum Comfort
Ergonomically Designed For Maximum Comfort
Designed with care, the Downtown’s interior was thoroughly tested for maximum ergonomic comfort from the early prototype phase. Our Downtown tubs also feature adjustable, high-volume jets with rotation effect for users of all heights. Thoroughly pre-tested jet placement ensures the most enjoyable and therapeutic full body massage with a special emphasis on the back.
Well Tested Interior Comfort 01 web
Stainless Steel Structure With 25 Year Warranty
Stainless Steel Structure With 25 Year Warranty
All Aquatica spas are equipped with a robust stainless-steel structure that extends their service life. The stainless-steel structure distributes and supports the weight of the hot tub and will last for decades, in any climate, even under humid conditions. Our engineers selected stainless steel framing over thermally treated wood, composite, or aluminum framing despite its higher costs as it guarantees product long-term durability under intense everyday use. Aquatica spas include a structural warranty of up to 25 years.
Stainless Steel Structure 01 (web)
Free-Moving, Completely Modifiable Jets - All For Your Comfort
Free-Moving, Completely Modifiable Jets - All For Your Comfort
Pick and adjust the angle, flow rate, or completely close the jets off altogether, the choice is yours. Full customization of these jets allows relaxation to reach the highest of heights, accommodating the preference and needs of any person.
Aquatica Downtown Spa Free Moving Completely Modifiable Jets All For Your Comfort 1 (web)
Optional Integrated Bluetooth Audio
Optional Integrated Bluetooth Audio
Aquatica’s Integrated Bluetooth Audio sets the perfect mood for your therapeutic HydroRelax experience. This world-​class waterproof audio system, features powerful Class D amplifier technology, weather-resistant pop-up speakers, and an integrated subwoofer. Delivering 300W peak at low distortion, the Aquatica Audio Station includes high-quality audio transducers with an integrated digital filter and adjustable volume. Simply connect the system to your phone or computer via Bluetooth to listen to your favourite tunes from music apps such as Spotify or Deezer or iTunes® tracks.
Integrated Bluetooth Audio 01 (web)
Optional Aromatherapy Package
Optional Aromatherapy Package
Take your spa experience to the next level, by adding our special aromatherapy package with a variety of therapeutic scent options. The soothing perfume canister is plumbed into the air blower system, heating the air and releasing relaxing fragrances from specially-infused beads. Aromatherapy treats a wide array of mental and physical ailments from stress and anxiety, to headaches and digestive issues.
Aquatica Aromatherapy Package
Downtown Hydromassage System Layout & Control (US/International 220/240V/50/60Hz)
Downtown Hydromassage System Layout & Control (US/International 220/240V/50/60Hz)
The Downtown offers an exclusive home spa experience, thanks to state-of-the-art underwater massage technology, chromotherapy LED lighting, and a digital control keypad. The hydromassage jets deliver a therapeutic massage for the entire back, while the air massage nozzles target the legs. Hydromassage therapy is proven to relieve physical pain, muscle tension, and physiological stress. Important: If you don’t have a 220-volt power outlet available in the spot where you are placing the tub, you will require a professional electrician service to install the line.
Aquatica Downtown Hydromassage System Layout

360 View

Use our 360 View functionality to inspect your product of interest from different angles. Just click the Play button at the center of the image and rotate the product in different directions to see its shape and other details of interest.

Product Details

General parameters

Exterior dimensions (in) 79 L x 59.25 W x 31.75 H
Depth to overflow drain (in) 20.5
Product weight (lb) 549
Shape Rectangular
Product material DurateX™ Tub Shell With Composite Siding
Installation type Freestanding
Warranty 10 Year Limited Warranty on the bathtub shell

Other parameters

Collection name Downtown
Sku Downtown-HydroRelax-Composite
Country where manufactured USA
Product color White
Surface finish High Gloss
Drain placement Reversible
Assembly required No
Type of massage Hydromassage

Interior parameters

Interior depth (in) 23.5
Interior length top (in) 66
Interior width top (in) 45.5

Package parameters

Package dimensions (in) 86.5 L x 67 W x 47.75 H
Shipping weight (lb) 988
Number of boxes 1

Electrical power requirements

Electrical standards 220-240V/50-60Hz
Required electrical voltage 220-240V/50-60Hz
Junction box 1 Wire
Electrical circuit breakers 25A RCD protected
Circuits required 1 Single Circuit

Installed equipment

Circulation pump No
Heater No
Bluetooth audio system No
Stereo speakers No
Subwoofer No
